Agric-Scopic Telescopic 4x4 Loader

£31,598.00 + VAT

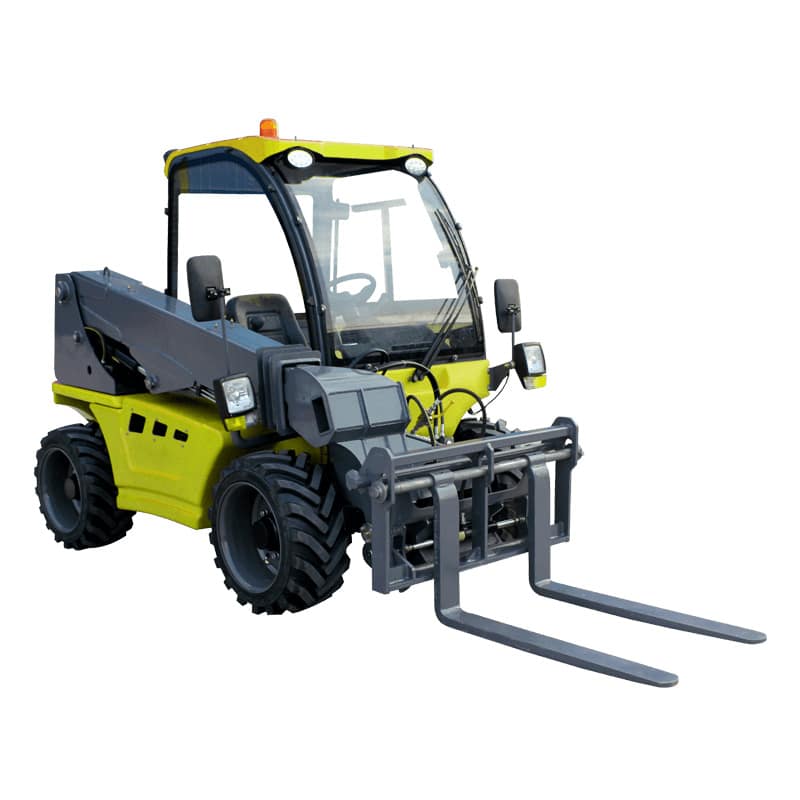

The AGRI-SCOPIC 4×4 telescopic wheel loader with its 1350kg capacity is one of the smallest telescopic trucks in its class. It has the latest PERKINS 403J-17 (Euro V) water cooled engine and a POCLAIN drive system.

Once purchased we will call you to discuss delivery costs.

Once hired we will call you to discuss delivery costs.

Available on back-order

Description

The AGRI-SCOPIC 4×4 telescopic wheel loader with its 1350kg capacity is one of the smallest telescopic trucks in its class. It has the latest PERKINS 403J-17 (Euro V) water cooled engine and a POCLAIN drive system.

The AGRI-SCOPIC is driven by a three-cylinder PERKINS Euro V engine with 18.4KW that generates 24.67 horsepower.

Lifting Capacity is 1,350 kilograms up to height of 4.0 metres (boom retracted).

It is easy to operate and capable of navigating most terrains with its Hydrostatic 4×4 wheel motor drive SYSTEM.

The Standard Full Cabin with heater, reverse camera, soundproofing, full lighting and a suspension seat makes this a very comfortable all weather machine.

The AGRI-SCOPIC loader at 1550 mm wide and 3350mm long, with a weight of 2800kg, it is ideal for towing from site to site.

Also, with its various attachments this makes this loader a very versatile machine.

STANDARD CONFIGURATION:

  • Perkins 403D Diesel Engine
  • Drive, Poclain Hydrostatic Wheel Motors
  • High & Low Switchable 4×4 (4×2 /4×4) Full Power Steering Rear Axle
  • Full Glass Cabin (Suspension Seat with Seat Belt, Cabin Heater, Fan) Full Road Lighting (Led Lights)
  • Electric Direction / Lift Joystick
  • Reverse Mirrors + Alarm
  • Flashing Beacon Reversing Camera
  • 3rd & 4th Auxiliary Hydraulics
  • Tow Hitch + Electrics
  • Tyres 4 x 26 / 12-16.6 Pneumatic

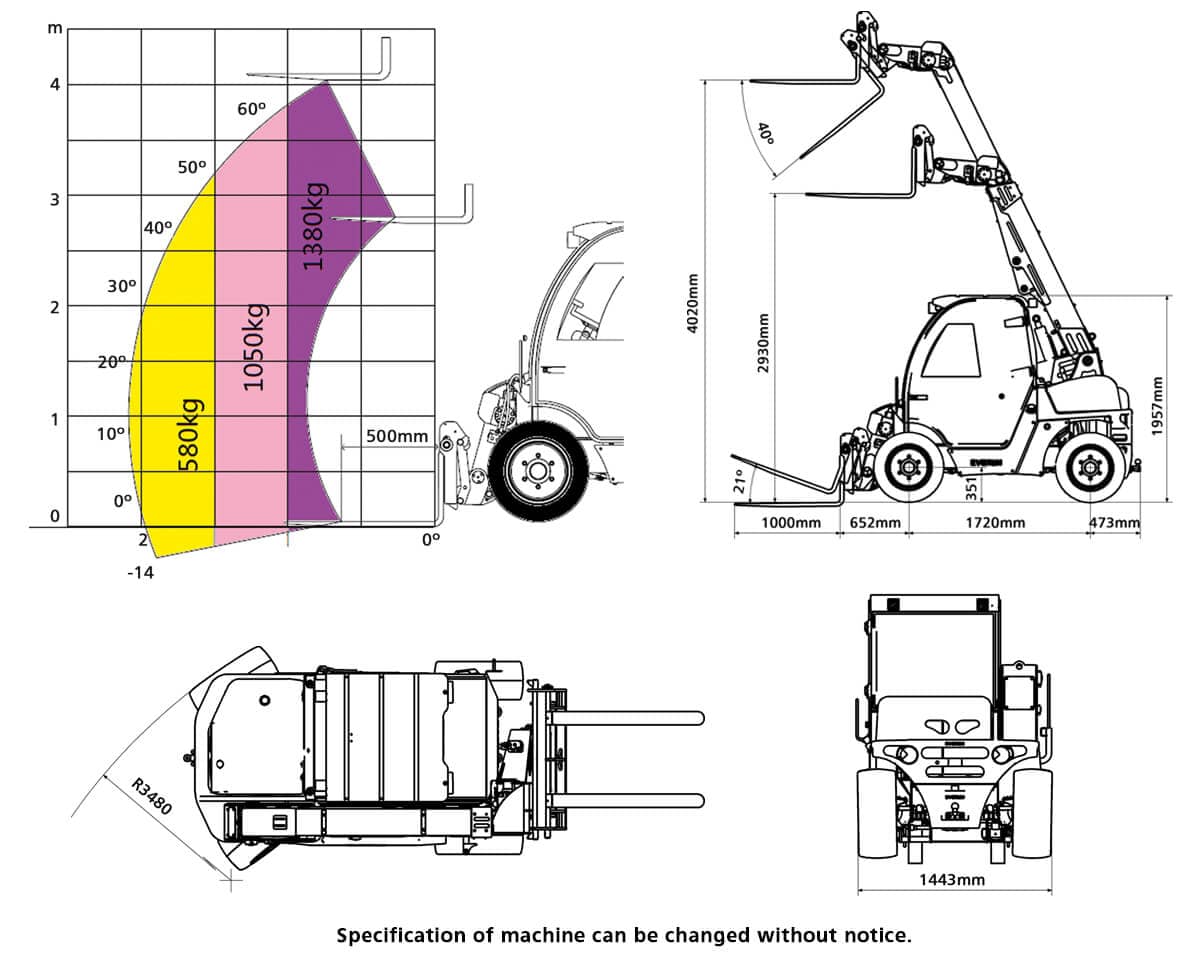

Specification

Loading capacity:
1,400kg

Bucket capacity:
0.3m3

Max driving speed (I/II):
8/16km/h

Fuel consumption:
230g/kw/h

Engine model:
Perkins 403D-15 diesel

Engine power:
20.9/24.6kw

Rated Speed:
2200/2800r/min

Service brake:
Four wheel hydraulic spread-shoed brake

Lifting time:
10s

Working pressure:
21mpa

Wheel base:
1700mm

Breakout force:
10kn

Tyres:
26*12-16.5

Oil flow:
22l/min

Towing capacity:
750kg (unbraked) • 1,250kg (braked)

Net weight:
2,800kg
